Hamann Manus (1925)

Martin (US), page 356 - 358

Martin (Dtsch), page 380 & 419







                                                                                              source: M.Reese





"The designer of this machine is Chr. Hamann, Berlin. Figure 318 shows the first model, which was driven manually. In both the interests of expediency, and to comply with what has proven popular with the machine operators. the designer has provided the machine with the same exterior design as that of the Odhner machines and also copied its dimensions. The interior design of the machine, however. is completely new and original and has nothing in common with the mechanical principles of the Odhner models. Its most important working part is not the pinwheel itself but a geared wheel with a thirty-six-part inner and outer gearing (see figure 319)."





Drawings and models





for bigger and more pictures, click on the picture





                                                              for bigger and more pictures, click on the picture







Advertising

for bigger and more pictures, click on the picture

                                                              for bigger and more pictures, click on the picture







Chr.Hamann also constructed the Mercedes-Euklid, the Berolina and the Gauss models.







Literature and Links



see this article for an overview of Christel Hamann life and work.

(Büro-Bedarf-Rundschau, 10.6.1933, pg. 193 ff, reprint in "Von Menschen und Maschinen", DBS)





Prof. C. Hamann: Diagram to explain the ratchet (geared wheel)





rechts klicken zum kopieren, links zum öffnen    user manual for the Hamann Manus  (in German, 0.9 MB)  source: Don Hereford

rechts klicken zum kopieren, links zum öffnen    user manual for the Hamann Manus  (in English, 0.6 MB)  source: Steve Carter







Note: the terminology of Model A, B, etc. follows the literature, but is really describing versions of the same Model Hamann-Manus, addressing improvements and changes over time.





Model A

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w/o tc) x 13
input  cursors, non-rotating
prod. years  1925 - 1926
mach. built  ca. 1,000
features

 only one rotation direction

 automatic division

 spring-loaded carriage
dimensions  31 x 14 x 15 cm
weight  5.5 kg
known s/n  710, 956

for bigger and more pictures, click on the picture
      source: M.Reese





Model B

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 13
input  cursors, non-rotating
prod. years  1927
mach. built  500
features

 as model A, but with 10th carriage in counter register
dimensions  31 x 14 x 15 cm
weight  5.5 kg
known s/n  1 008, 1 304

for bigger and more pictures, click on the picture
      source: F.Haeghens





Model C

variant I: curled crank support; s/n 5 234 1st machine where the lever (x / :) in front of the carriage has a plastic cap

variant II from ca. s/n 5 700: straight crank support; crank axe in case; from s/n 6 229 carriage transport lever also with plastic cap

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 13
input  cursors, non-rotating
prod. years  1927 - 1937
mach. built  ca. 9.000
features

 as model B
dimensions  31 x 14 x 15 cm
weight  5.5 kg
known s/n  1,596 - 8,197

for bigger and more pictures, click on the picture
      source: M.Reese







Model D

tooth bar under the carriage on the right side

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 13
input  cursors, non-rotating
prod. years  1937 - 1944
mach. built  3,800
features

 as model C, change in carrier handling and clearance
dimensions  27 x 15 x 16 cm
weight  5.5 kg
known s/n  ca. 8,201 - 12,000

for bigger and more pictures, click on the picture
      source: A.Pohl







Model E

no tooth bar; color green (from s/n 13 000); logo "De Te We" instead of "DTW"

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 13
input  cursors, non-rotating
prod. years  1948 - 1953
mach. built  3,000
features

 as model D
dimensions  26 x 16 x 16 cm
weight  5.5 kg
known s/n  12,001 - 15,000

for bigger and more pictures, click on the picture
      source: H.Schneemann







Model F

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 13
input  cursors, non-rotating
prod. years  1953 - 1955
mach. built  1.000 ??
features

 as model R w/o back transfer
dimensions  26 x 16 x 15 cm
weight  5.9 kg
known s/n  15 006 - 15 710

for bigger and more pictures, click on the picture

                                                                                                                       source: H.Schneemann







Model R

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 13
input  cursors, non-rotating
prod. years  1953 - 1959
mach. built  10.000
features

 back transfer
dimensions  26 x 16 x 15 cm
weight  5.9 kg
known s/n  41 880 - 49 571

for bigger and more pictures, click on the picture
source: H.Schneemann



rechts klicken zum kopieren, links zum öffnen    user manual for the Hamann Manus  R (in German, 0.8 MB)

rechts klicken zum kopieren, links zum öffnen    user manual for the Hamann Manus R (in French, 1.2 MB)









Hamann Automat Z

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  cursors, non-rotating
prod. years  1928 - 1930
mach. built  ca. 2.500
features

 electric, automatic division
dimensions  30 x 23 x 16 cm
weight  10 kg
known s/n  259, 592

for bigger and more pictures, click on the picture
source: A.Jeanroy









Hamann Automat Y

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 13 (w cr) x 8 (w tc) x 16
input  cursors, non-rotating
prod. years  1928 - 1930
mach. built  ca. 500
features

 as Automat Z, bigger capacity
dimensions
weight
known s/n  304, 3125

for bigger and more pictures, click on the picture
source: M.Landwehr









Hamann Automat X

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  cursors, non-rotating
prod. years  1930
mach. built  1000
features

 as Automat Z, plus autom. multiplication
dimensions  30 x 24 x 17 cm
weight  11 kg
known s/n  2,684, 2,818, 3,001 - 4,000

for bigger and more pictures, click on the picture
source: M.Landwehr









Hamann Automat V

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 9 (w tc) x 16
input  cursors, non-rotating
prod. years  1931 - 1950
mach. built  ca. 5.000
features

 as Automat X, plus short multiplication
dimensions  36 x 25 x 16 cm
weight  12 kg
known s/n  4.001 - 8.950

for bigger and more pictures, click on the picture
source: Antikma Auktionen - Rainer Rzepka









Hamann Automat T

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 9 (w tc) x 16
input  cursors, non-rotating
prod. years  1950 - 1954
mach. built  6,350
features

 as Automat V, clearance with the M button
dimensions  31 x 25 x 17 cm
weight  11 kg
known s/n  8.951 - 15.300

for bigger and more pictures, click on the picture
source: H.Schneemann









Hamann Automat S / S12

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

   9 (w cr) x 9 (w tc) x 16

 12 (w cr) x 9 (w tc) x 16 S12
input  cursors, non-rotating
prod. years  1952 - 1961
mach. built  8.000
features

 as Automat T, plus autom. carriage movement
dimensions  34 x 27 x 17 cm
weight  9 kg
known s/n  60.001 - 68.000, 68.074

for bigger and more pictures, click on the picture
source: Franzoso-Ranghella Collection









Hamann Elma

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 13
input  cursors, non-rotating
prod. years  1934 - 1945
mach. built  7,000
features

 as Manus F, electric
dimensions  27 x 24 x 16 cm
weight  7.5 kg
known s/n  1.001 - 8.000

for bigger and more pictures, click on the picture
source: Antikma Auktionen - Rainer Rzepka









Hamann Delta

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16

 also 13 x 8 x 16
input  full keyboard
prod. years  1934 - 1941
mach. built  1,200
features

 as Elma, with full keyboard
dimensions  29 x 34 x 24 cm
weight  12 kg
known s/n  1.101 - 2.300

for bigger and more pictures, click on the picture
source: Antikma Auktionen - Rainer Rzepka









Hamann E

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  cursors, non-rotating
prod. years  1953 - 1959
mach. built  5,100
features

 autom.division, back transfer, electric
dimensions  34 x 26 x 15 cm
weight  9.5 kg
known s/n  70,001 - 75,100

for bigger and more pictures, click on the picture
permission granted









Hamann Selecta

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9+8 (w cr) x 9 (w tc) x 16
input  full keyboard for both factors
prod. years  1932 - 1934
mach. built  5,200 (all Selecta models)
features

 electric
dimensions  36 x 31 x 25 cm
weight  19 kg
known s/n  1,101 - 6,300

for bigger and more pictures, click on the picture
source: H.Schneemann



rechts klicken zum kopieren, links zum öffnen    user manual for the Hamann Selecta  (in German, 0.4 MB)









Hamann Selecta SP

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9+8 (w cr) x 9 (w tc) x 16
input  full keyboard for both factors
prod. years  1935 - 1940
mach. built  5,200 (all Selecta models)
features

 electric, 16 digit storage register with backtranfer
dimensions  36 x 41 x 25 cm
weight  21 kg
known s/n  1,101 - 6,300

for bigger and more pictures, click on the picture
source: M.Reese









Hamann Selecta SPU

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9+8 (w cr) x 9+9 (w tc) x 16
input  full keyboard for both factors
prod. years  1937 - 1940
mach. built  5,200 (all Selecta models)
features

 electric, storage for result and counter register
dimensions  36 x 41 x 25 cm
weight  21 kg
known s/n  1,101 - 6,300

for bigger and more pictures, click on the picture
source: E.Anthes









Hamann Selecta SU

principle  ratchet (geared wheel)

capacity

 9+8 (w cr) x 9+9 (w tc) x 16
input  full keyboard for both factors
prod. years  1937 - 1940
mach. built  5,200 (all Selecta models)
features

 electric, storage for counter register
dimensions  36 x 31 x 25 cm
weight  19 kg
known s/n  1,101 - 6,300

for bigger and more pictures, click on the picture

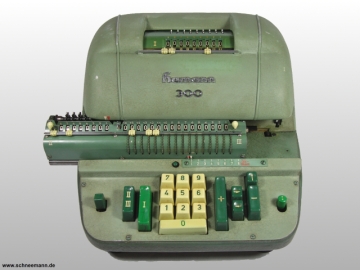

Hamann  300 (A)

rechts klicken zum kopieren, links zum öffnen    user manual for the Hamann 300 (in German, 1,6 MB)

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  10 keyboard
prod. years  1953 - 1954
mach. built  ca. 1.500
features

 electric, autom. division,   back transfer from CR and RR
dimensions  30 x 20 x 31 cm
weight  13 kg
known s/n  100.001 - 101.500

for bigger and more pictures, click on the picture
source: H.Schneemann

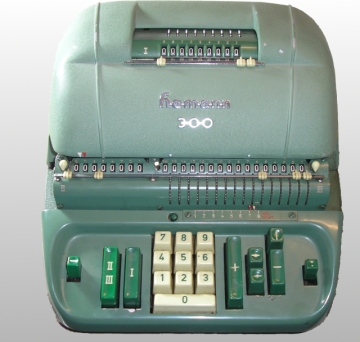

Hamann  300 (B)

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  10 keyboard
prod. years  1954 - 1959
mach. built  ca. 3.000
features

 same as Hamann 300 (A), new housing, technical improvements
dimensions  30 x 20 x 31 cm
weight  13 kg
known s/n  102.001 - 105.000
price   2,465 DM (1957)
for bigger and more pictures, click on the picture
source: M.Reese









Hamann  400

manufacturer: SCM Hamann Rechenmaschinen, Berlin

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  10 keyboard
prod. years  1960 - 1963
mach. built  max. 500
features

 electric, semi automatic,  simplified version of the Automatic 500
dimensions  36 x 39 x 22 cm
weight  15 kg
known s/n  201,001 - 201,500

for bigger and more pictures, click on the picture
source: K.Schildbach

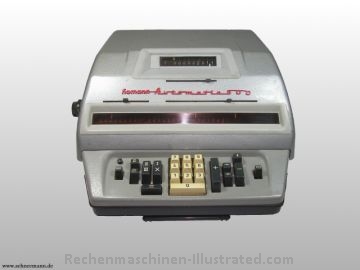

Hamann Automatic 500

manufacturer: SCM Hamann Rechenmaschinen, Berlin

rechts klicken zum kopieren, links zum öffnen    user manual for the Hamann 500  (in German, 6 MB)

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  10 keyboard
prod. years  1959 - 1962
mach. built  9,600
features

 electric, full automatic,  back tranfer
dimensions  37 x 39 x 21 cm
weight  17 kg
known s/n  150,001 - 159,600

for bigger and more pictures, click on the picture
source: H.Schneemann









Hamann Automatic 505

manufacturer: SCM Hamann Rechenmaschinen, Berlin

principle  ratchet (geared wheel)

for bigger and more pictures, click on the picture
capacity

 9 (w cr) x 8 (w tc) x 16
input  10 keyboard
prod. years  1962 - 1968
mach. built  ca. 31,000
features

 electric, further development of the Automatic 500
dimensions  38 x 38 x 22 cm
weight  16 kg
known s/n  500,001 - 531,000

for bigger and more pictures, click on the picture
source: O.Koch









Hamann 600 (1630)

manufacturer: SCM Hamann Rechenmaschinen, Berlin

construction: G.Hornauer

Literature: Anthes, E.: Die letzte Hamann-Rechenmaschine: Modell 600, in: HBw Nr. 33 (1993), S. 13 - 18



principle  ratchet (geared wheel) & add.segments

for bigger and more pictures, click on the picture
capacity

 14 (w cr) x 9 (w tc) x 15
input  10 keyboard
prod. years  1968 - 1970
mach. built  4.300, 50% un-sold
features

 electric, printing, memory- and constant-register
dimensions  35 x 50 x 21 cm
weight  22 kg
known s/n

 600,001 - 602,000 (Mod. 600)

 700,001 - 702,300 (Mod. 1630)

for bigger and more pictures, click on the picture
source: E.Anthes







last updated: 21-Feb-12
