pictures_Archimedes

Archimedes (1906)

Martin (Dtsch), pages 191 - 194 & 389 - 392

"This is a stepped drum machine similar to that described in the introduction. Both models A and B have the well-known slide-setting mechanism. Model A did not have tens-carry in the revolution; model B, however, was the first stepped drum machine to incorporate this feature. The two models do not differ materially from the remaining Glashütter products with regard to size and weight."

"Manufacturer: originally Fischer & Poethig of Glashütte, and since 1912 Glashütter Rechenmaschinenfabrik Reinhold Pöthig of Glashütte, Saxony."

The development of the Archimedes company and their calculator models are described by Martin Reese in his book "Neue Blicke auf alte Maschinen" (page 19 ff.)

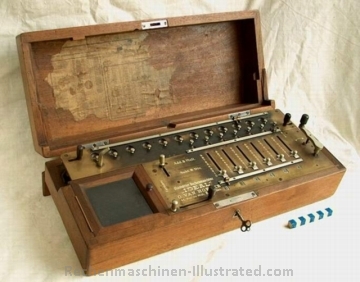

Archimedes A

marketed in Belgium under the brand "Ideal"

principle	stepped drum
capacity	various
input	sliders
prod. years	1906 - 1913
mach. built
features	no tens carriage in counter reg.
dimensions	50 x 23 x 14 cm
weight	9 kg
known s/n	up to 521

	for bigger and more pictures, click on the picture
		source: F.Haeghens

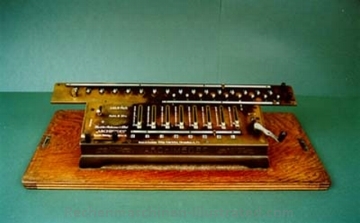

Archimedes B

principle	stepped drum
capacity	8 (w cr) x 7 (w tc) x 12 also 6 x 7 x 12, 8 x 9 x 16
input	sliders
prod. years	1911 - 1913
mach. built
features	tens carriage in counter register
dimensions	45 x 20 x 20 cm
weight	14 kg
known s/n	572 - 870

	for bigger and more pictures, click on the picture
		source: antik-world

Archimedes C

principle	stepped drum
capacity	10 (w cr) x 9 (w tc) x 16
input	sliders
prod. years	1920 - 1940
mach. built
features	also with capacity 10 x 8 x 13, 10 x 11 x 20, 12 x 13 x 24
dimensions	40 x 18 x 13 cm
weight	7 kg
known s/n	3.362 - 16.430

	for bigger and more pictures, click on the picture
		source: D.Bölter

Archimedes D

principle	stepped drum
capacity	9 (w cr) x 8 (w tc) x 13
input	full keyboard
prod. years	1915 - 1940
mach. built
features	various capacities available
dimensions	37 x 30 x 19 cm
weight	11 - 16 kg
known s/n	2.300 - 6.612

	for bigger and more pictures, click on the picture
		source: R.Rehbein

Archimedes DEaD

	principle	stepped drum
	capacity	9 (w cr) x 9 (w tc) x 16
	input	full keyboard
	prod. years	1927 - 1940
	mach. built
	features	also with capacity 8 x 7 x 14, 10 x 11 x 20, 12 x 13 x 24 electric, automatic division
	dimensions	37 x 30 x 19 cm
	weight	11 kg
	known s/n	6.055 - 7.870

		for bigger and more pictures, click on the picture

Archimedes DF Junior

	principle	stepped drum
	capacity	7 (w cr) x 6 (w tc) x 10
	input	full keyboard
	prod. years	1925 - 1940
	mach. built
	features	also with capacity 6 x 6 x 10
	dimensions	22 x 29 x 16 cm
	weight	8 kg
	known s/n	10.216 - 10.376

		for bigger and more pictures, click on the picture

Archimedes F Junior

principle	stepped drum
capacity	6 (w cr) x 6 (w tc) x 10
input	sliders
prod. years	1925 - 1940
mach. built
features	also with capacity 7 x 6 x 10
dimensions	21 x 16 x 6 cm
weight	4 kg
known s/n	10.028, 10.146, 10.177, 12.110

	for bigger and more pictures, click on the picture
		source: V.Monnier

Archimedes H

principle	stepped drum
capacity	8 (w cr) x 9 (w tc) x 16
input	full keyboard
prod. years	1930 - 1940
mach. built
features	also with capacity 8 x 6 x 11, 8 x 7 x 13
dimensions	45 x 35 x 20 cm
weight	12 kg
known s/n	8.134 - 13.295

	for bigger and more pictures, click on the picture
		source: R.Rehbein

Archimedes L

principle	stepped drum
capacity	8 (w cr) x 7 (w tc) x 14
input	full keyboard
prod. years	1935 - 1940
mach. built
features	also with capacity 9 x 9 x 17 electric, autom.division
dimensions	42 x 45 x 25 cm
weight	18 kg
known s/n	3.749 - 20.985

	for bigger and more pictures, click on the picture
		source: Greifswald

Archimedes LK

principle	stepped drum
capacity	8 (w cr) x 6 (w tc) x 11
input	full keyboard
prod. years	1935 - 1940
mach. built
features	also with capacity 8 x 7 x 14 electric, autom.division, simplified version of L
dimensions	35 x 35 x 25 cm
weight	14 kg
known s/n	2.999 - 24.220

	for bigger and more pictures, click on the picture
		source: M.Reese

Archimedes LL

principle	stepped drum
capacity	8 (w cr) x 7 (w tc) x 14
input	full keyboard
prod. years	1935 - 1940
mach. built
features	as model L, wide body also with capacity 8-13 x 9 x 17 and 8-13 x 11 x 20 electric, autom. division
dimensions	44 x 35 x 25 cm
weight	18 kg
known s/n

	for bigger and more pictures, click on the picture
		source: H.Schneemann

Archimedes NH

principle	stepped drum
capacity	8 (w cr) x 7 (w tc) x 14
input	full keyboard
prod. years	1952 - 1956
mach. built
features	as model H also with capacity ? x ? x 17
dimensions	41 x 38 x 25 cm
weight	11 kg
known s/n	up to 63.500

	for bigger and more pictures, click on the picture
		source: Greifswald

Archimedes NHD

principle	stepped drum
capacity	11 (w cr) x 11 (w tc) x 22
input	full keyboard
prod. years	1952 - 1957
mach. built
features	as model HD, autom.division
dimensions
weight
known s/n	up to 65.000

	for bigger and more pictures, click on the picture
		source: Greifswald

Archimedes PE

principle	stepped drum
capacity	9 (w cr) x 9 (w tc) x 18
input	full keyboard
prod. years	1952 - 1960
mach. built
features	similar to model L, electric, autom.division
dimensions	50 x 40 x 18 cm
weight	15 kg
known s/n	35.190, 38.805, 43.105

	for bigger and more pictures, click on the picture
		source: Greifswald

last updated: 21-Feb-12
